Microware HDMI Extender Over CAT 5e|6|7 Cable (60M Extender Over Single CAT Cable)-Black

Microware HDMI Extender Over CAT 5e|6|7 Cable (60M Extender Over Single CAT Cable)-Black

( 1 Customer Rating )

Original price was: ₹3,999.00.Current price is: ₹1,234.00.

Availability: 10 in stock

Brand	ViewHD
Connector Type	HDMI, RJ45
Cable Type	HDMI, Ethernet
Compatible Devices	Monitor, Television
Recommended Uses For Product	HDMI signal extension over CAT5e/6/7 cable

Categories: Computer & Laptop Accessories, HDMI Repeater & Extender

Fast Shipping

Secure Payment

Shop With Confidence

Easy Returns

Microware HDMI Extender 1080p@60Hz, 3D, Over Single Cat5e/Cat6/Cat 7 Cable Full HD Uncompressed Transmit Up to 60 Meters

Description

The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2.Features

Transmits HDMI video and audio signals up to 50m over a single CAT6 cable; Support video resolution up to 1920*1080@60Hz, 3D signal.
Support copy EDID, can match many kinds of display device.
Compliance with HDMI 1.3 and HDCP 1.2 standard.
High compatibility, can auto-match source and display device.
Built-in automatic adjustment system, make the image smooth, clear and stable.
Built-in ESD protection system, Simple to install, plug and play.

SPECIFICATION – HDMI Extender over cat5e/6/7

Length of Cat5e cable between Rx and TX: 165ft(50m)

Length of Cat6/Cat7 cable between RX and TX: 196ft(60m)

HDMI Support: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format: DTS – HD/Dolby-true HD/DTS/Dobly-AC3/DSD

Max transmission bandwidth: 1.65Gbps

Input/output HDMI cable distance: 49ft(15m) AWG26 HDMI standard cable

Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V

Plug and Play

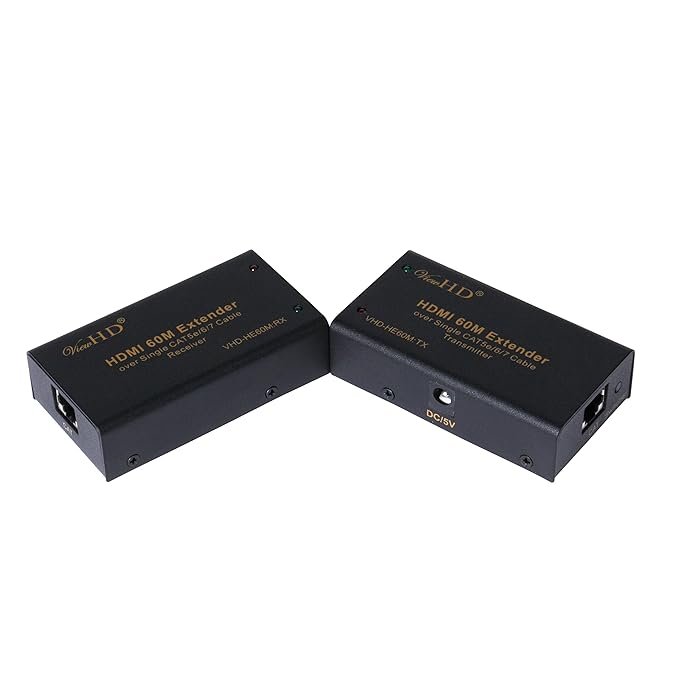

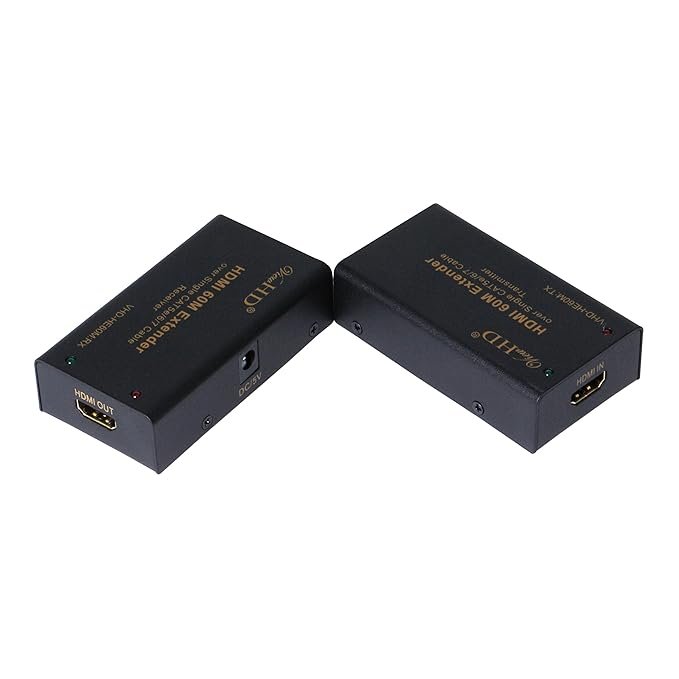

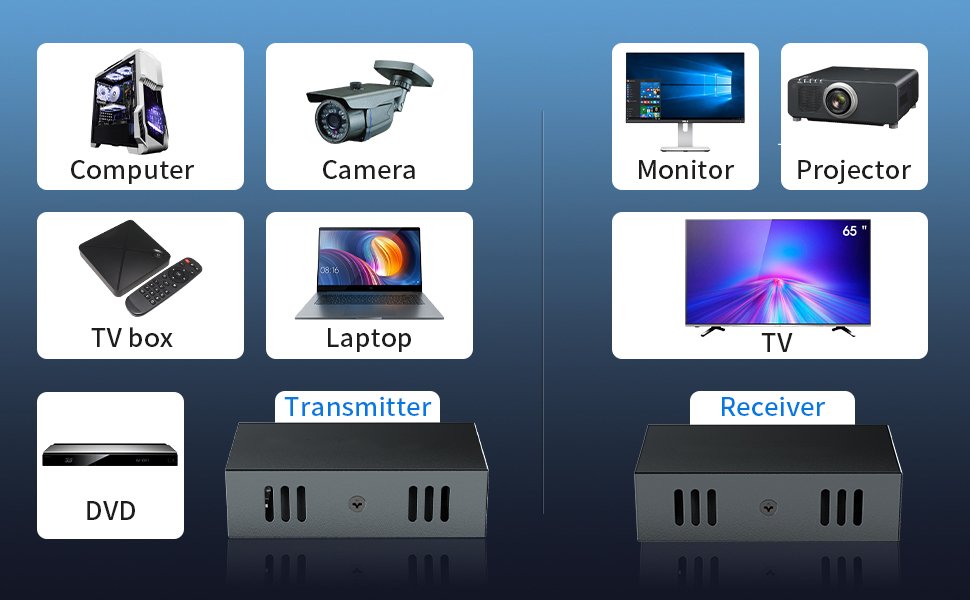

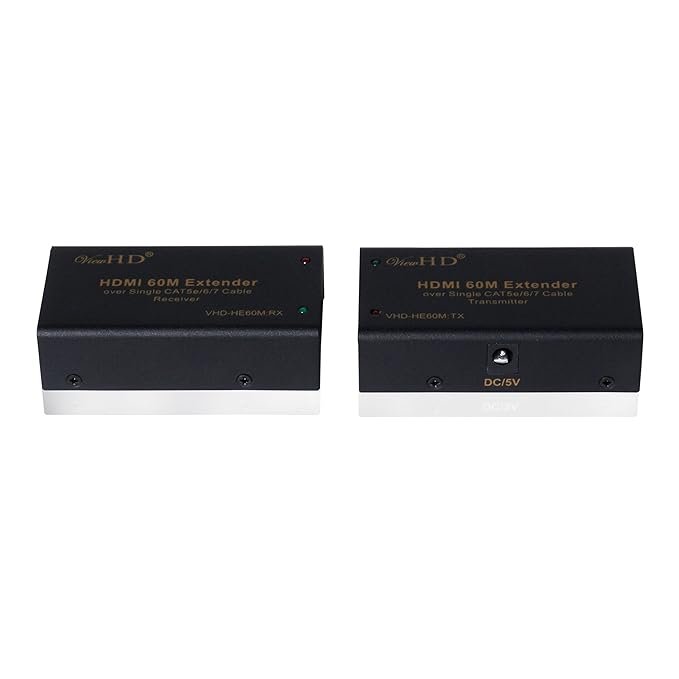

This device uses one piece of CAT5e/6/7 cable (Not Include) to extend the HDMI signal up to 196ft at 1080p. It not only breaks the limitation of HDMI cable lengths but also has more flexibility and convenience for installation. The extender system consists of a transmitter and a receiver unit. Connect your HDMI source such as a set-top box. DVD player or gaming console to the Transmitter with an HDMI cable. The Transmitter will connect to the Receiver through a CAT cable and finally, the display.

The HDMI extender can use a CAT6 cable to transmit the HDMI signal to a display no more than 196ft.

Specification:

Support resolution:3D/1080p/1080i/720p/576p/576i/480p/480i/Up to 1920×1080@60Hz
Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max transmission bandwidth: 1.65Gbps
Input/Output HDMI cable distance:16ft(5m) AWG26 HDMI standard cable
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V

Long distance

Connect single Cat6 cables up to 196ft instead of HDMI cable between TX and RX Extender
Our equipment supports 3D effects to give you an immersive experience
Note: Requires both your input and output to support 3D functionality

High compatibility & Multi-scene applications

Built-in automatic adjustment system and ESD protection system. Compatible with PC, game console, Blu-ray player, media player, etc.; It can be widely used in the area of education, outdoor or indoor LED display screens, project, video conference, metro, multimedia home theater, etc.
